Cross-sectional TEM analysis

Cross-sectional transmission electron microscopy (cross-section TEM) is a method for obtaining high-resolution images of the cross-sections of larger materials. The area of interest is selected from a larger particle, prepared using a technique like FIB, and imaged with TEM. The method is widely used in materials science and nanotechnology.

Measur cross-sectional TEM
...and more than 500 other happy clients
  • Fast turnaround times
  • Personal service from method experts
  • Competitive prices
  • Result accuracy guarantee

What is cross-sectional TEM used for?

A transmission electron microscope (TEM) uses a high-energy electron beam to form high-resolution images of samples that are less than 100 nm thick. Preparation procedures for such thin samples can be complex, and sometimes the desired area for imaging is inside the sample, for example, when the boundary between layers in thin film materials is studied. In such cases, a cross-section of the sample needs to be prepared before imaging.

Cross-sectional TEM is widely used in material science, cell biology, and nanotechnology to image the internal structures of materials that are otherwise too large for TEM. One common application is determining the thickness and uniformity of thin films.

Interested in thin film thickness measurements? Download our method selection guide!

Cross-section preparation methods

There are two main methods to obtain a cross-sectional sample for TEM: microtomy and ion beam cutting.

A microtome machine uses blades to slice the sample into 60-100 nm thick chips. The blades are made of glass, steel, or diamond. Microtomes can be used to prepare samples from bones, minerals, and polymeric materials such as plastics. Sometimes, samples are molded in epoxy before microtomy.

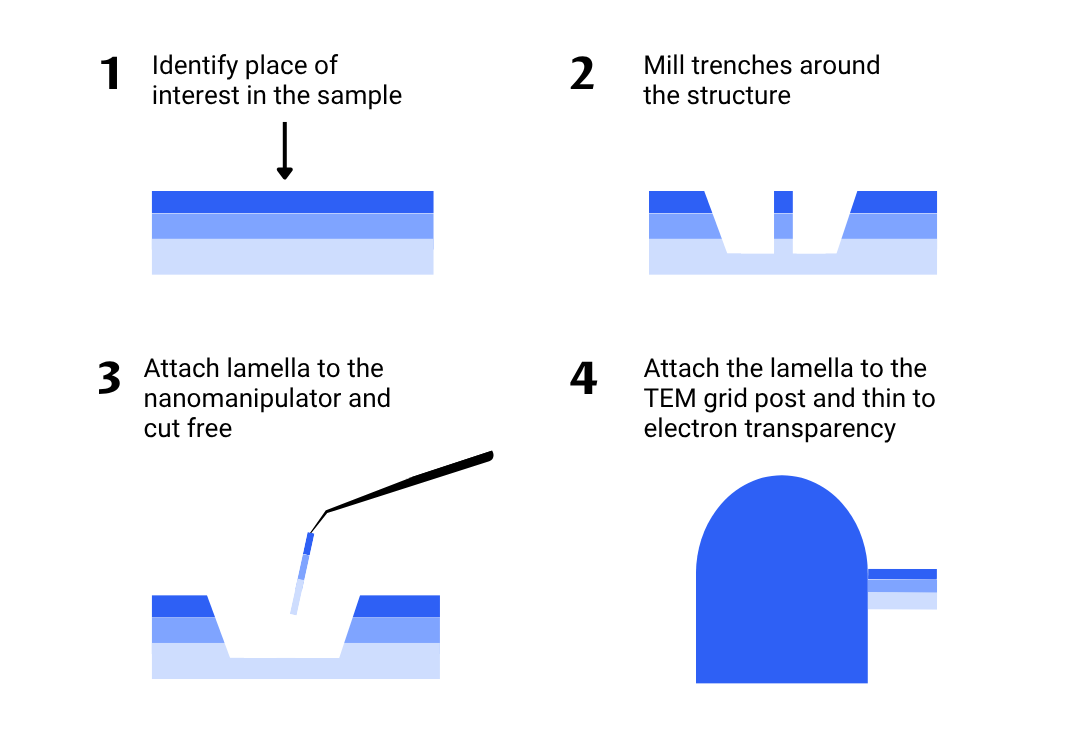

A focused ion beam (FIB) is a nano-machining technique that uses a high currency ion beam to mill the cross-sectional sample out from a larger object. A dual ion beam is used to carve a piece of the original sample. This piece is then removed with a carrier and mounted for thinning with the ion beam to achieve the required thickness. Another option is to use a broad ion beam (BIB), which tends to produce less beam damage.

Suitable sample matrices

  • Materials that are too large for normal TEM.
  • Thin films
  • Semiconductors
  • Metals
  • Bone
  • Tissues

Ideal uses of cross-sectional TEM

  • Cross sectional imaging of semiconductors.
  • Imaging of thin film layers.
  • High resolution imaging for failure analysis.
  • Nanoparticle characterisation.
  • Semiconductor research.
  • Fault finding in material studies.
  • Multilayer thin material analyses.
  • Cell imaging in bone research.

Ask for an offer

Fill in the form, and we'll reply in one business day.

Answering the following questions helps us prepare an offer for you faster:

  • How many samples do you have and what is the sample material?
  • Do you have a recurring need for these tests? If yes, how often and for how many samples at a time?

Have questions or need help? Email us at or call +358 50 336 6128.

Frequently asked questions

What is cross-sectional TEM commonly used for?

Cross-sectional TEM is used when the area of interest is inside of the sample, or the sample is too large for TEM imaging. TEM produces high-resolution 2D images.

What are the limitations of cross-sectional TEM?

Some materials may be too brittle for the preparation of the cross-sections. Cross-sectioning is also inherently destructive, and should therefore only be performed after relevant non-destructive test methods, such as micro-CT, have been employed.

What kinds of samples can be analyzed with cross-sectional TEM?

A very wide range of materials can be examined with cross-sectional TEM. High-resolution images can be produced from rocks and minerals, bones, metals, thin films, and semiconductor materials.
